High Definition Video Quality
With a 1920*1080p Full HD camera, the X300 records videos with crystal clear resolution capturing crucial details of any incidents on and off the road.
The X300 records at 30fps without dropping a single frame; so you can rely on it to capture every event of your commute with accuracy, be it a light fender bender or a hit-and-run incident.

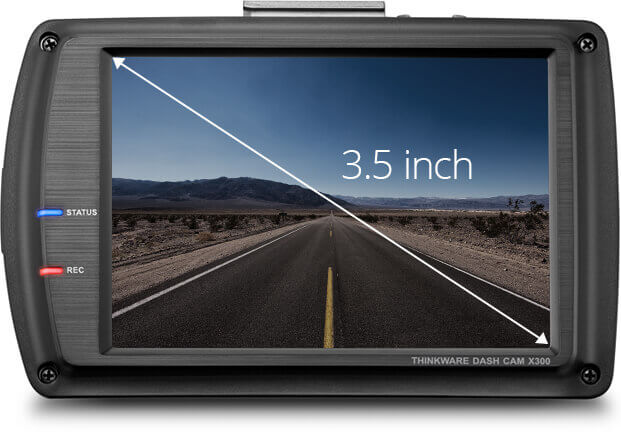

3.5" LCD Touchscreen Monitor
The 3.5” touchscreen LCD viewfinder of the X300 allows you instant viewing of the footage immediately after it has been recorded, instead of feeling anxious through a long drive until you have an access to the viewer on a computer screen. The touchscreen viewfinder also assists you in the set up process of the DASH CAM.
2M Pixel High-Resolution Image Sensor
The 2M pixel high-resolution CMOS sensor significantly improves the video quality even at night. With the X300, all your footages appear sharp and crystal clear.
140˚ Wide Angle View
The x300 has a 140˚ wide viewing angle for maximum visibility, capturing a wider view of the roads with effectively reduced blind spots.
Fast Processor
A high performance Cortex A8 core CPU ensures a stable and uninterrupted performance of the X300 while it carries out various tasks. The A8 processor has been developed as a high-end processor and extensively tested to be proven effective in many applications including tablet computers and smartphones.
Comprehensive Driving Data through GPS
With GPS, THINKWARE DASH CAM X300 records the driving speed and routes of your vehicle as well as its location on the map. You can find out the speed and direction of your vehicle at the moment of collision in addition to the direction and severity of the collision for more comprehensive and accurate assessment of the situation. This feature is also useful for student drivers who are new on the road as it may help them select the most familiar and regular routes for their drive. The features mentioned above are available only with the built-in GPS or using the GPS accessory sold separately.
THINKWARE Proprietary Technology:
The Dual Save technology is specially designed to save recorded footages in both the Micro SD card and the built-in internal memory in incident recording mode. It functions as an additional safeguard against potential loss or damage of any crucial footage in the aftermath of a severe collision. In the event that the memory card gets damaged, the Dual Save Technology guarantees a backup copy of the video data in the internal memory.
* The Dual Save Technology is activated when specific level of impact is detected. (The impact sensitivity is adjustable using the PC / Mac Viewer.)
Accelerometer G-Sensor
The Active Impact Monitoring System utilizes a 3-axis G-Sensor to continuously monitor any impact to your vehicle, and triggers incident recording mode whenever an impact is registered.
Easy-to-Use, Highly Functional Viewer
You can retrieve the recorded videos containing time, speed, and location data on your PC or Mac computer using the THINKWARE PC Viewer. You may also use the application to configure the device, as well as have an access to firmware upgrades.
Various Autonomous Recording Modes
THINKWARE DASH CAM X300 supports various recording modes which you can choose from according to your needs: Continuous Recording, Incident Recording, Motion Detection Recording, and Manual Recording.
-
Continuous Recording Mode
Continuous Recording Mode is activated automatically when you start the vehicle engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
-
Incident Recording Mode
The Active Impact Monitoring System automatically stores the ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
-
Parking Surveillance Mode
The X300 supports parking surveillance mode which monitors your vehicle when its ignition is off. A combination of motion detection and impact monitoring is utilized to secure your unattended vehicle against common hit-and-run incidents during your absence.
* Automatic switching mode feature is enabled with optional hardwiring cable installation. Professional installation is highly recommended. -
Manual Recording
Similar to a video camera, you can use Manual Recording Mode to capture events that occurs in front of your vehicle whether or not it is involved. Use this feature to capture all significant moments such as a friendly deer approaching your vehicle or a dangerous road rage scenario as useful evidence.
Recording Duration
The following chart is an approximation of recording duration in accordance to the video quality and the capacity of the Micro SD memory card. Actual recording times may vary.
| Video Quality | Full HD 30fps | Full HD 15fps | HD 30fps | HD 15fps | |
|---|---|---|---|---|---|
| Capacity | 16 GB | 94 min | 94 min | 140 min | 204 min |
| 32 GB | 202 min | 202 min | 300 min | 439 min |
* Micro SD Memory Cards are considered consumable parts and its life may vary based on user conditions. It carries a six-month warranty.
INTUITIVE INTERFACE
The button layout and cable ports of THINKWARE DASH CAM X300 are designed for easy operation with maximum convenience. With its intuitive design, anyone can figure out and control the X300 with ease.
Anti-Vibration Mounting
The compact 3M tape adhesive mount of the X300 eliminates vibration and windshield glare, as an effective replacement for bulky suction cup which often obstructs driver’s view of the road.
Thermal Self-Protection
In case of intense heat, the specially designed heat discharge construction and the built-in thermal sensor enables the X300 to automatically turn off to prevent overheating, protecting the device as well as its stored data.
Fail-Safe Recording
In the event the power gets disconnected after an accident, fail-safe recording of the X300 activates the Super Capacitor for backup power to ensure safe storage of any recording in progress; so you can be assured that your valuable data will be securely stored under any circumstances.
PRODUCT SPECIFICATIONS
GENERAL SPECIFICATIONS
| Dimension | 106.3 x 65.8 x 31.4 mm 4.2 x 2.6 x 1.23 inches |
Weight | 150g 0.33lbs |
|---|---|---|---|
| Package | Main Dash Cam Unit, Mount with 3M tape (1ea), Car Charger, Adhesive Cable Holder (5ea), MicroSD memory card with adapter(consumable), USB MicroSD card reader, Quick Start Guide/Warranty/User Manual (stored in the MicroSD card) |
||
DETAILED SPECIFICATIONS
| Camera | 2.0M Pixels, 1/2.7" (CMOS) |
|---|---|
| Display Panel | 3.5" TFT LCD (480x320) |
| Viewing Angle | Approximately 146° (diagonally) |
| Video | Full HD (1980X1080), HD (1280X720) for rear view camera when connected |
| Capacity | MicroSD Card 8GB/16GB/32GB Class 10 |
| Recording Modes | Continuous Recording Mode, Incident RecordingMode, Manual Recording Mode, Parking Surveillance Recording Mode, Capturing Still Image, Audio Recording |
| Acceleration Sensor | 3-Axis Acceleation G-Sensor (3D, ±4G) |
| GPS | External GPS Receiver |
| Power | Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1(3.5pi) / Power Consumption: 5.3W(mean) - 2ch,30fp , 3.5W(mean) - 1ch,30fp / Super Capacitor |
| Interface | 1 x Video-IN (microUSB), 1 x External GPS port (2.5pi) |
| ETC | Front Security LED / Operation Status LED / Recording Status LED |
Certain features may not be supported under specific driving, vehicle, and navigation conditions while being subject to change through firmware updates for assurance of quality and safety. Furthermore, recording may not be available under specific user environment and should be used for reference purposes only.
CHOOSE
THINKWARE DASH CAM
- Rigorous Quality Control and Testing
- World's First Design Award Grand Slam
- Superb Video Quality
- No. 1 Brand in the Market
-
-
High Definition Video Quality
With a 1920*1080p Full HD camera, the X300 records videos with crystal clear resolution capturing crucial details of any incidents on and off the road.
The X300 records at 30fps without dropping a single frame; so you can rely on it to capture every event of your commute with accuracy, be it a light fender bender or a hit-and-run incident.
-
3.5" LCD Touchscreen Monitor
The 3.5” touchscreen LCD viewfinder of the X300 allows you instant viewing of the footage immediately after it has been recorded, instead of feeling anxious through a long drive until you have an access to the viewer on a computer screen. The touchscreen viewfinder also assists you in the set up process of the DASH CAM.
-
-
-
2M Pixel High-Resolution Image Sensor
The 2M pixel high-resolution CMOS sensor significantly improves the video
quality even at night. With the X300, all your footages appear sharp and crystal clear. -
140˚ Wide Angle View
The x300 has a 140˚ wide viewing angle for maximum visibility, capturing a wider view of the roads with effectively reduced blind spots.
-
Fast Processor
A high performance Cortex A8 core CPU ensures a stable and uninterrupted performance of the X300 while it carries out various tasks. The A8 processor has been developed as a high-end processor and extensively tested to be proven effective in many applications including tablet computers and smartphones.
-
Comprehensive Driving Data through GPS
With GPS, THINKWARE DASH CAM X300 records the driving speed and routes of your vehicle as well as its location on the map. You can find out the speed and direction of your vehicle at the moment of collision in addition to the direction and severity of the collision for more comprehensive and accurate assessment of the situation. This feature is also useful for student drivers who are new on the road as it may help them select the most familiar and regular routes for their drive.The features mentioned above are available only with the built-in GPS or using the GPS accessory sold separately.
-
-
THINKWARE Proprietary Technology:
The Dual Save technology is specially designed to save recorded footages in both the Micro SD card and the built-in internal memory in incident recording mode. It functions as an additional safeguard against potential loss or damage of any crucial footage in the aftermath of a severe collision. In the event that the memory card gets damaged, the Dual Save Technology guarantees a backup copy of the video data in the internal memory.
* The Dual Save Technology is activated when specific level of impact is detected. (The impact sensitivity is adjustable using the PC / Mac Viewer.)
-
-
-
-
Accelerometer G-Sensor
The Active Impact Monitoring System utilizes a 3-axis G-Sensor to continuously monitor any impact to your vehicle, and triggers incident recording mode whenever an impact is registered.
-
Easy-to-Use, Highly Functional Viewer
You can retrieve the recorded videos containing time, speed, and location data on your PC or Mac computer using the THINKWARE PC Viewer. You may also use the application to configure the device, as well as have an access to firmware upgrades.
-
-
Various Autonomous Recording Modes
THINKWARE DASH CAM X300 supports various recording modes which you can choose from according to your needs: Continuous Recording, Incident Recording, Motion Detection Recording, and Manual Recording.
-
Continuous Recording Mode
Continuous Recording Mode is activated automatically when you start the vehicle engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
-
Incident Recording Mode
The Active Impact Monitoring System automatically stores the ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
-
Parking Surveillance Mode
The X300 supports parking surveillance mode which monitors your vehicle when its ignition is off. A combination of motion detection and impact monitoring is utilized to secure your unattended vehicle against common hit-and-run incidents during your absence.
* Automatic switching mode feature is enabled with optional hardwiring cable installation. Professional installation is highly recommended. -
Manual Recording
Similar to a video camera, you can use Manual Recording Mode to capture events that occurs in front of your vehicle whether or not it is involved. Use this feature to capture all significant moments such as a friendly deer approaching your vehicle or a dangerous road rage scenario as useful evidence.
-
-
Recording Duration
The following chart is an approximation of recording duration in accordance to the video quality and the capacity of the Micro SD memory card. Actual recording times may vary.
* THINKWARE DASH CAM X300 supports a Micro SD memory card up to 32GB.Recording Duration Video Quality Full HD 30fps Full HD 15fps HD 30fps HD 15fps Capacity 16 GB 94 min 94 min 140 min 204 min 32 GB 202 min 202 min 300 min 439 min
* Micro SD Memory Cards are considered consumable parts and its life may vary based on user conditions. It carries a six-month warranty.
-
-
-
INTUITIVE INTERFACE
The button layout and cable ports of THINKWARE DASH CAM X300 are designed for easy operation with maximum convenience. With its intuitive design, anyone can figure out and control the X300 with ease.
-
-
Anti-Vibration Mounting
The compact 3M tape adhesive mount of the X300 eliminates vibration and windshield glare, as an effective replacement for bulky suction cup which often obstructs driver’s view of the road.
-
Thermal Self-Protection
In case of intense heat, the specially designed heat discharge construction and the built-in thermal sensor enables the X300 to automatically turn off to prevent overheating, protecting the device as well as its stored data.
-
Fail-Safe Recording
In the event the power gets disconnected after an accident, fail-safe recording of the X300 activates the Super Capacitor for backup power to ensure safe storage of any recording in progress; so you can be assured that your valuable data will be securely stored under any circumstances.
-
-
-
-
PRODUCT SPECIFICATIONS
GENERAL SPECIFICATIONS
General Specifications Dimension 106.3 x 65.8 x 31.4 mm
4.2 x 2.6 x 1.23 inchesWeight 150g
0.33lbsPackage Main Dash Cam Unit, Mount with 3M tape (1ea), Car Charger, Adhesive Cable Holder (5ea), MicroSD memory card with adapter(consumable),
USB MicroSD card reader, Quick Start Guide/Warranty/User Manual (stored in the MicroSD card)DETAILED SPECIFICATIONS
* This product is intended to record while vehicle is in motion.Detailed Specifications Camera 2.0M Pixels, 1/2.7" (CMOS) Display Panel 3.5" TFT LCD (480x320) Viewing Angle Approximately 146° (diagonally) Video Full HD (1980X1080), HD (1280X720) for rear view camera when connected Capacity MicroSD Card 8GB/16GB/32GB Class 10 Recording Modes Continuous Recording Mode, Incident RecordingMode, Manual Recording Mode, Parking Surveillance Recording Mode, Capturing Still Image, Audio Recording Acceleration Sensor 3-Axis Acceleation G-Sensor (3D, ±4G) GPS External GPS Receiver Power Input Voltage: DC 12/24V (Max 35V), Power Cable Port x 1(3.5pi) / Power Consumption: 5.3W(mean) - 2ch,30fp , 3.5W(mean) - 1ch,30fp / Super Capacitor Interface 1 x Video-IN (microUSB), 1 x External GPS port (2.5pi) ETC Front Security LED / Operation Status LED / Recording Status LED
Certain features may not be supported under specific driving, vehicle, and navigation conditions while being subject to change through firmware updates for assurance of quality and safety. Furthermore, recording may not be available under specific user environment and should be used for reference purposes only. -
CHOOSE
THINKWARE DASH CAM- Rigorous Quality Control and Testing
- World's First Design Award Grand Slam
- Superb Video Quality
- No. 1 Brand in the Market
-
